Table of Contents

Resources

1. Add a Resource Module

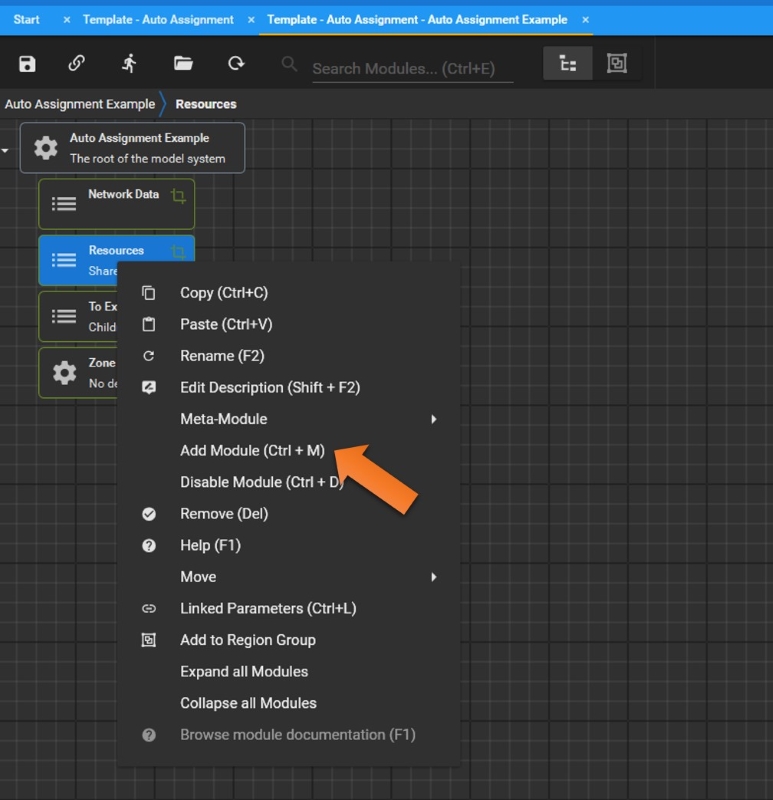

  • Step 1: Right-click and select "Add Module" or Press "Ctrl"+"M"
    alt text

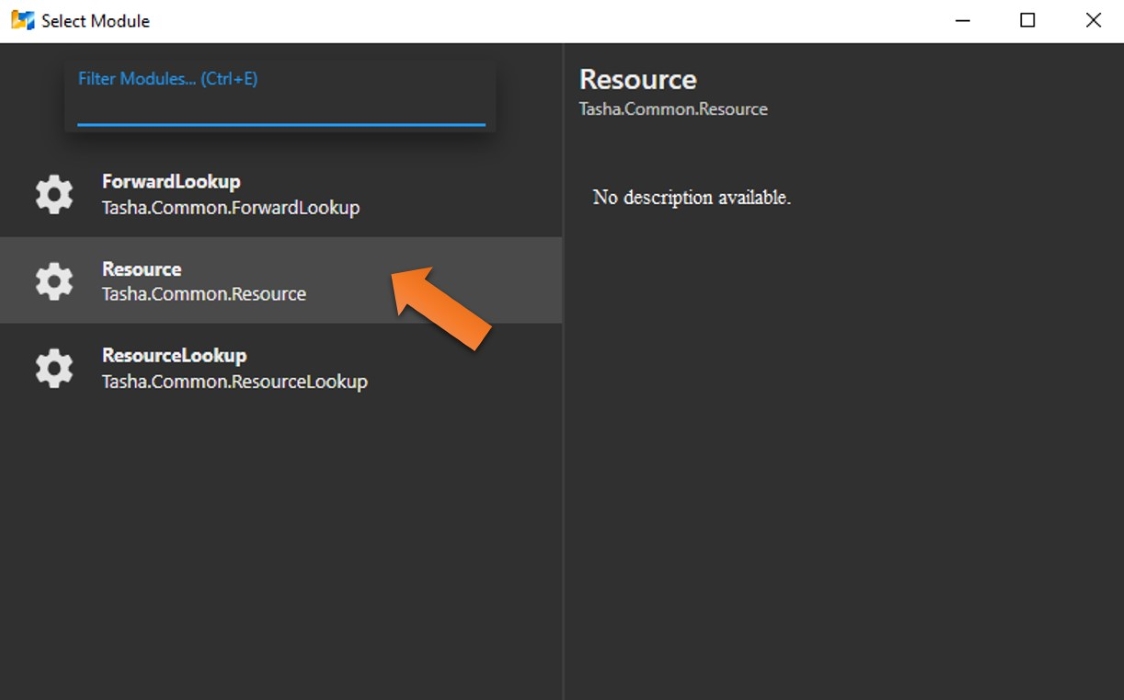

  • Step 2: Select Resource Module
    alt text

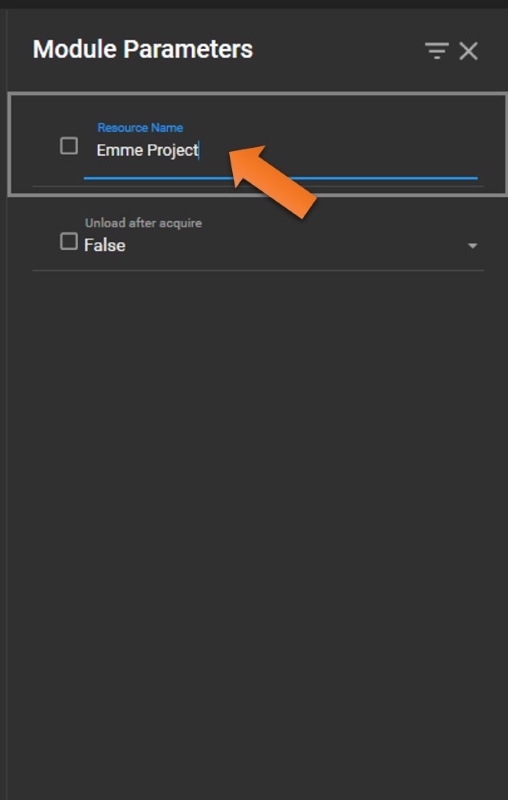

  • Step 3: Enter the Resource Name
    alt text


2. Add a Data Source Module

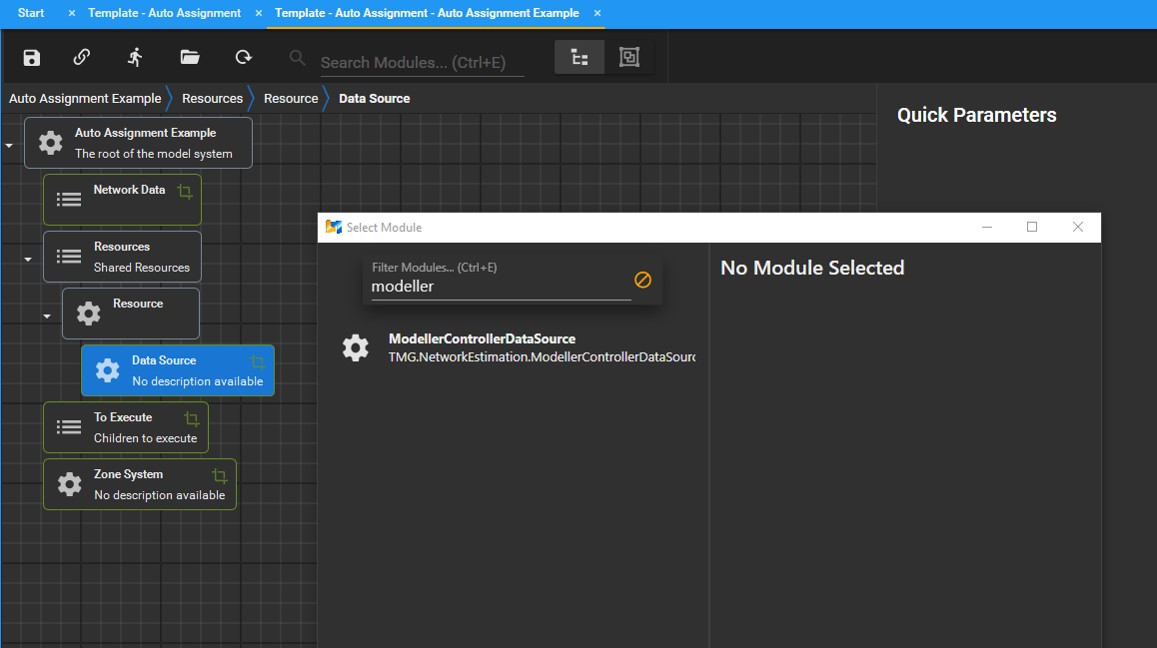

  • Step 1: Double-click Data Source and Type keywords to find "ModellerControllerDataSource" module
    alt text

  • Step 2: Double-click Project Folder to add "DirectorySeperatedPathFromOutputDirectory" Module
    alt text

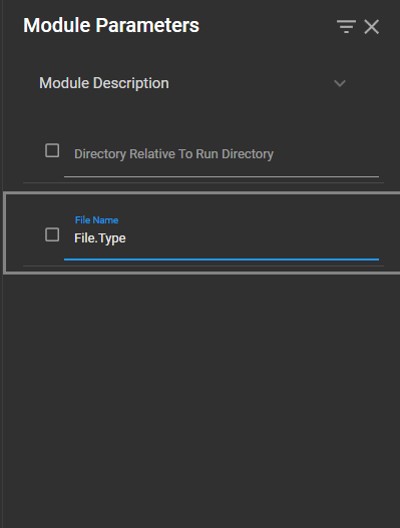

  • Step 3: In the Module Parameters window of Project Folder, right-click the top area of File Name section
    alt text

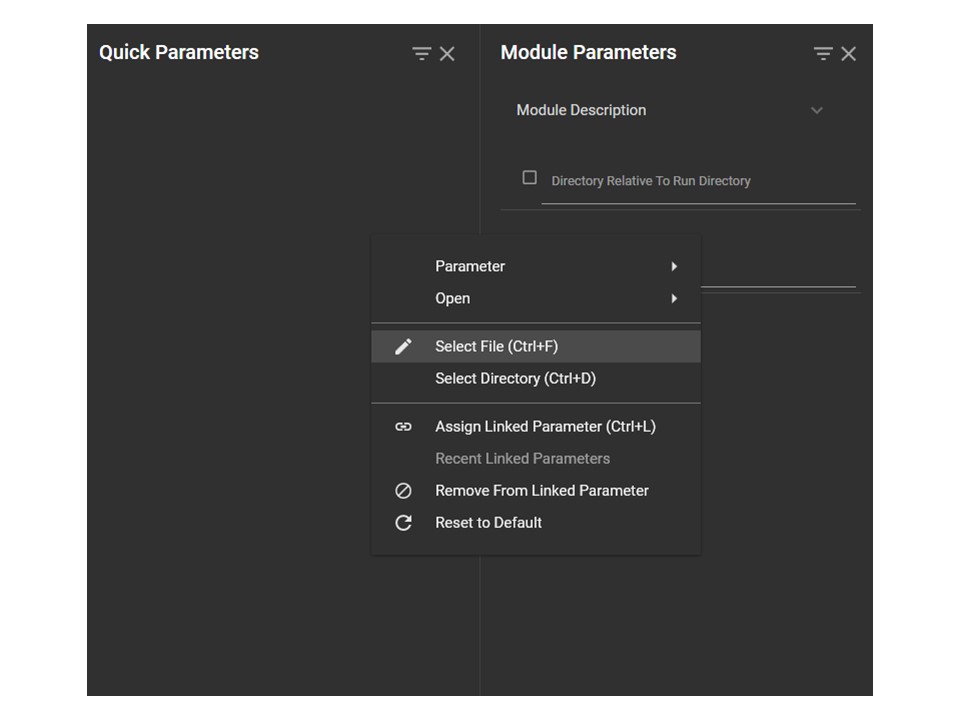

  • Step 4: Click "Select File" to find the target Emme Project you would like to use.
    (Note: it is recommended to use a different project other than the one you are working on to avoid unintended changes. For example, an empty Emme project with at least 1 scenario will be fine.)
    alt text

Alternatively, you may click anywhere of the File Name section and press "Ctrl"+"F" to select the target Emme project file you would like to use
alt text

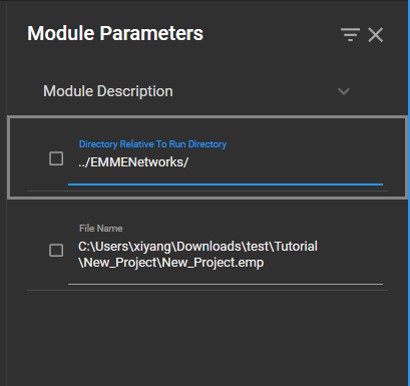

  • Step 5: Type "../EMMENetworks/" in the Directory section
    alt text

3. Convert the Modules into a Meta-Module for Easy Views and Changes (Optional)

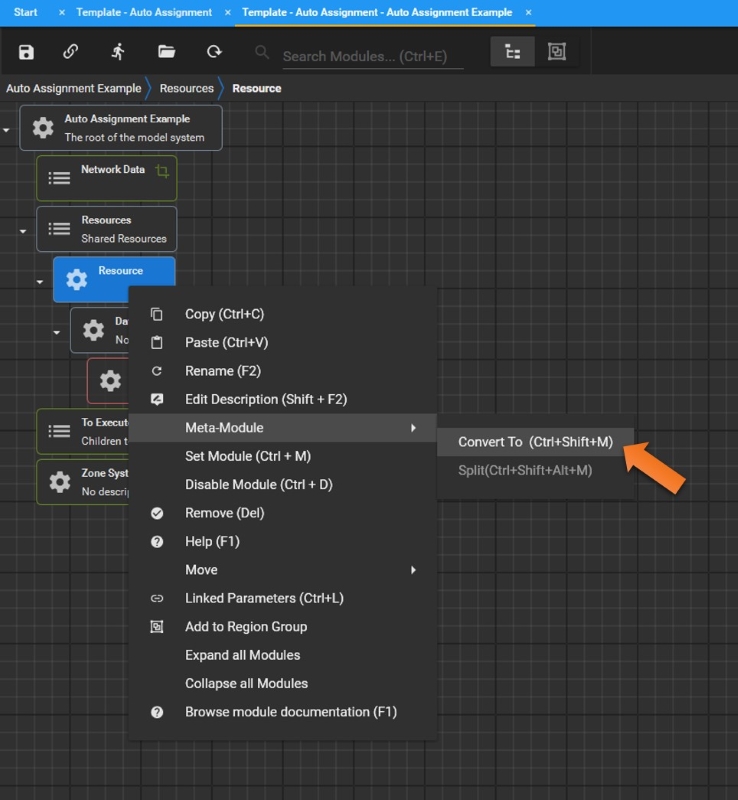

  • Step 1: Right-click Resource and select "Meta-Module"->"Convert To". Alternatively, Click Resource and press "Ctrl"+"Shift"+"M".
    alt text

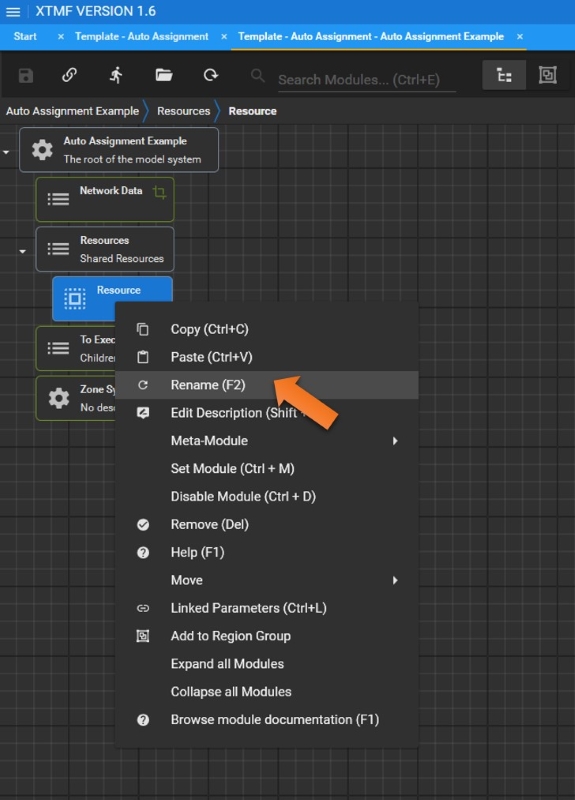

  • Step 2: Rename the Meta-Module (e.g., Emme Project File) alt text

4. Add Module Parameters to Quick Parameters (Optional)

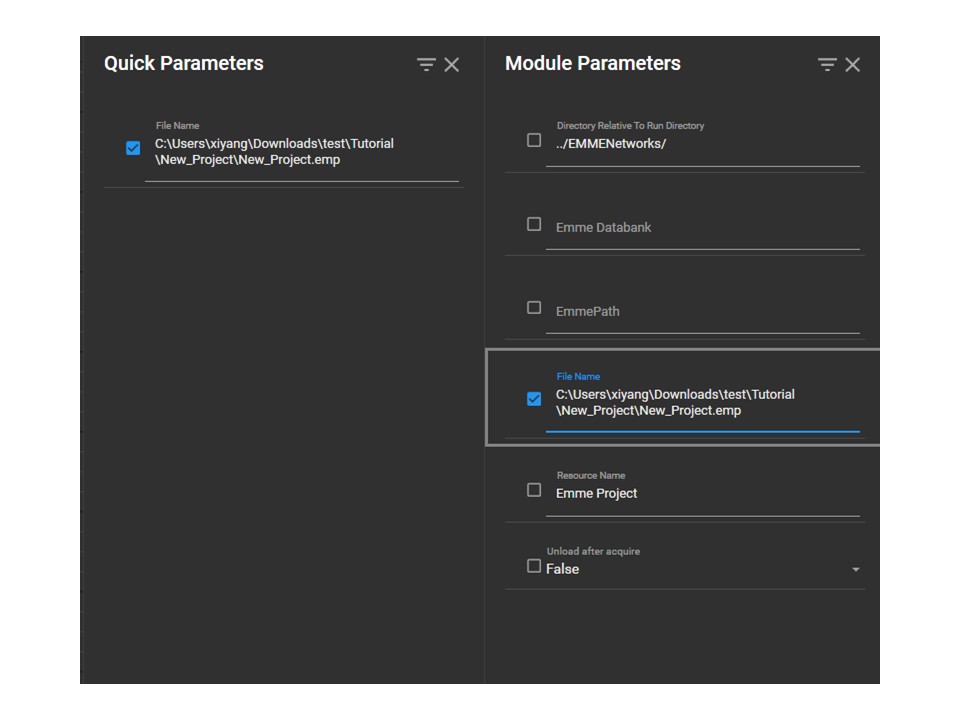

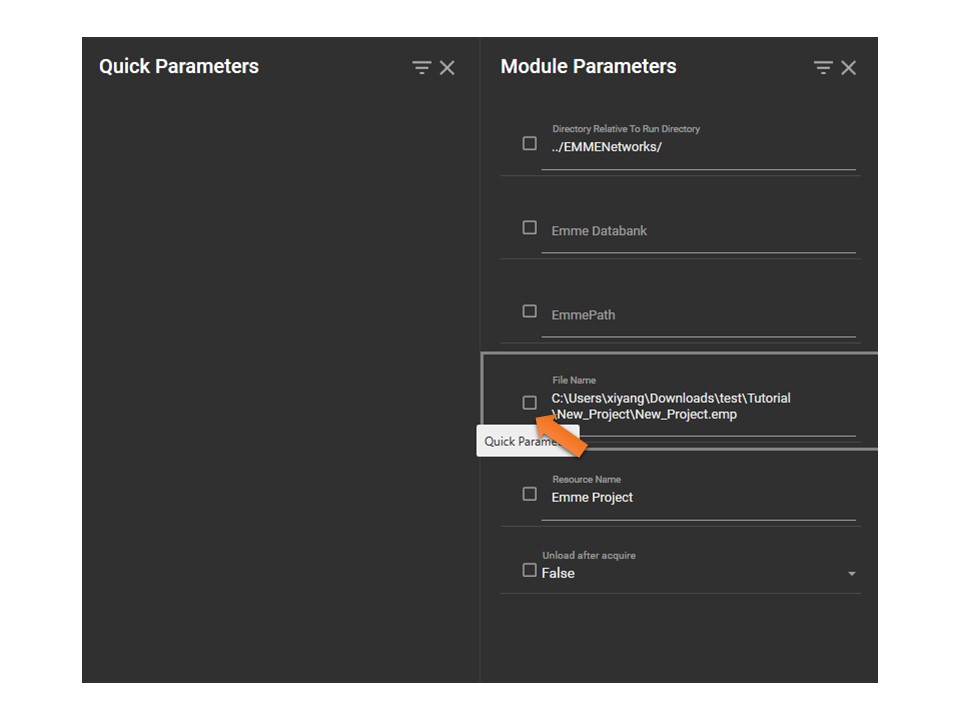

Check the box of the File Name section to add it to Quick Parameters window for easier changes later.
alt text

Now you can modify the parameter values in Quick Parameters when switching between modules. alt text
