Add Export Subarea Tool to XTMF

This tutorial shows how the subarea tool can be added to XTMF in general and also where to add it within the GTAModel setup in XTMF.

Note

Adding Export Subarea Tool to XTMF requires XTMF 1.11+.

Tutorial - How to add the tool within XTMF

Adding the ExportSubareaTool to XTMF GUI requires following the following step:

  • Add the Export Subarea Tool Module to the Tools to execute or run in XTMF
  • Enter all module parameters needed to run the tool. See module parameter explanation for "export subarea tool" below for more.
  • Add all the class sub-module you want to run. You add as many as you want.
  • Add sub-module parameter needed to run the tool. See sub-module parameter explanation for "Traffic Classes".
  • Add shape file location sub-module and set the name of the shape file to use. This is required only if you want XTMF define a subarea based on a shapefile representing the subarea.
  • Run model system
Note

The subarea tool can be added as many times (within as many classes as is needed)

Below contains details on how to add the tool to XTMF

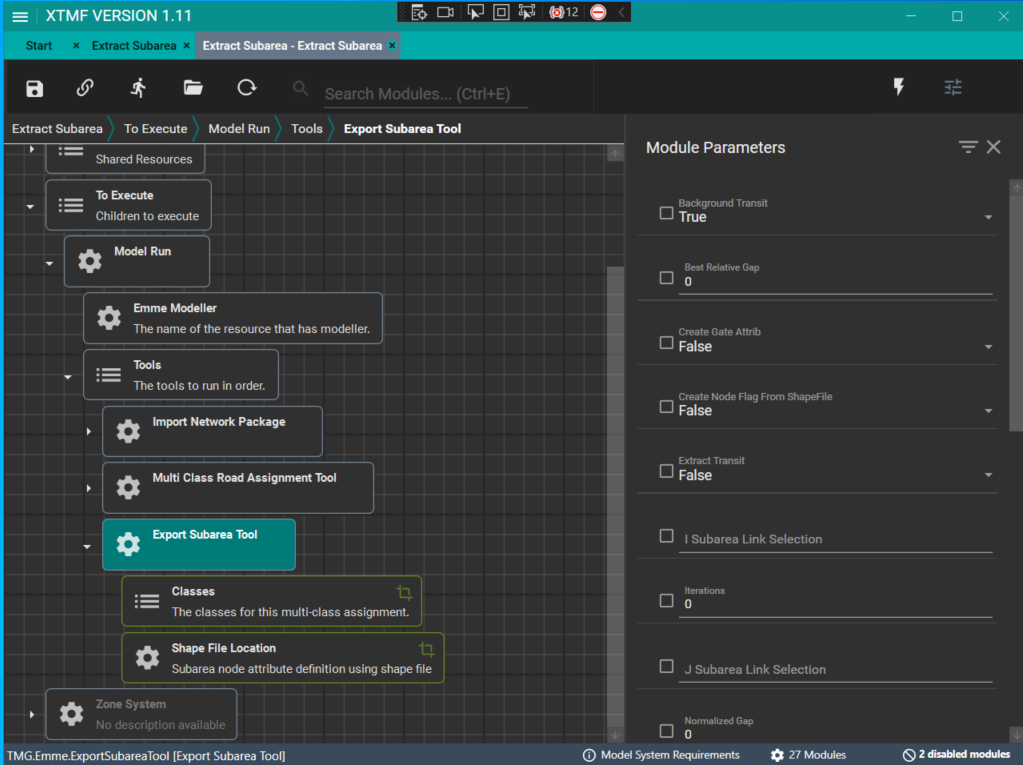

1. Add the Export Subarea Tool Module to the Tools to execute or run in XTMF

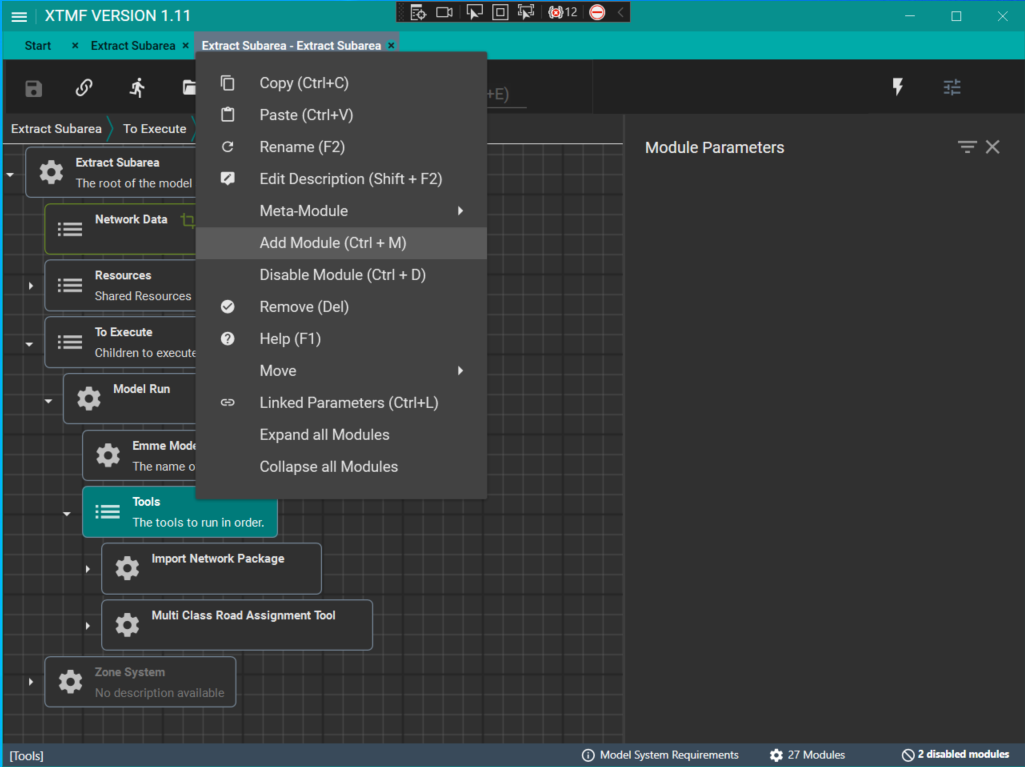

Add Module
Figure 1: Add Module

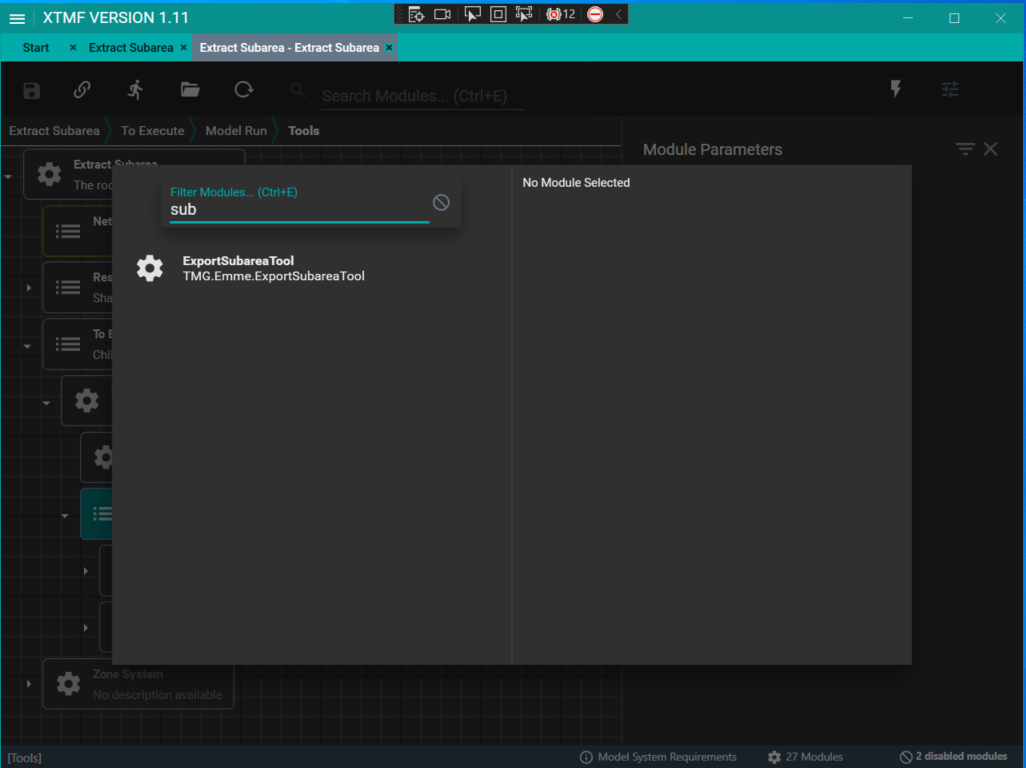

Search for and ExportSubareaTool
Figure 2: Search for and ExportSubareaTool

2. Enter all module parameters needed to run the tool.

Add subarea module parameters
Figure 3: Enter subarea module parameters

3. Enter all class sub-module you want to run. You can add as many as you want.

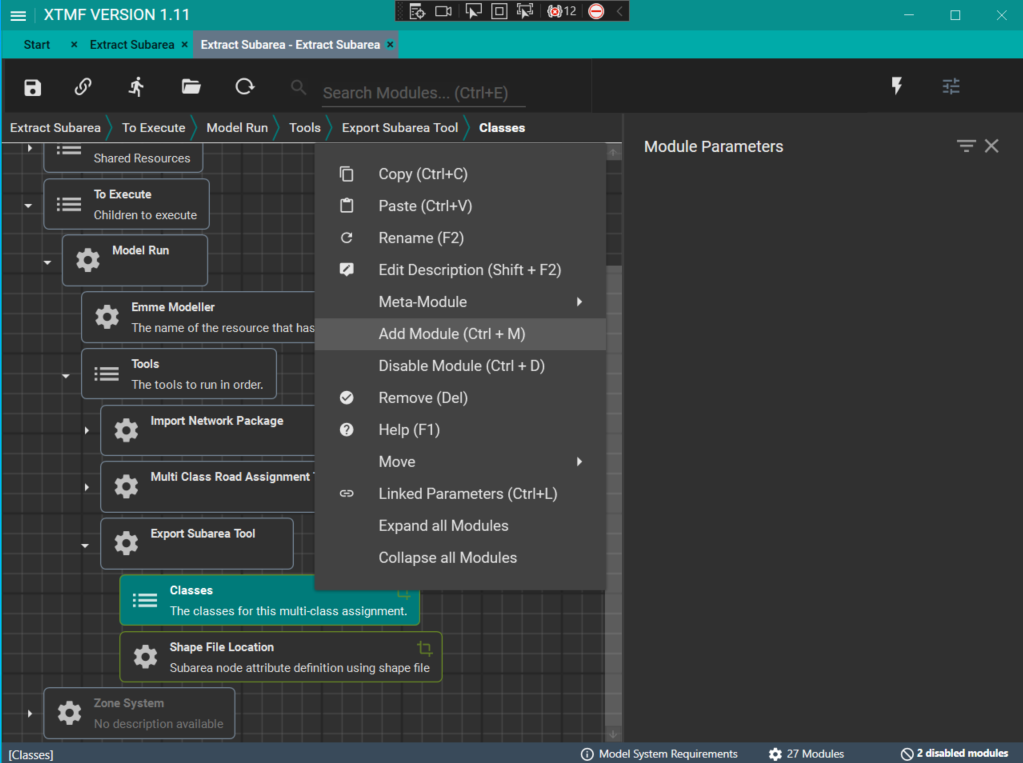

Add class sub-module
Figure 4: Add module (Ctrl + M)

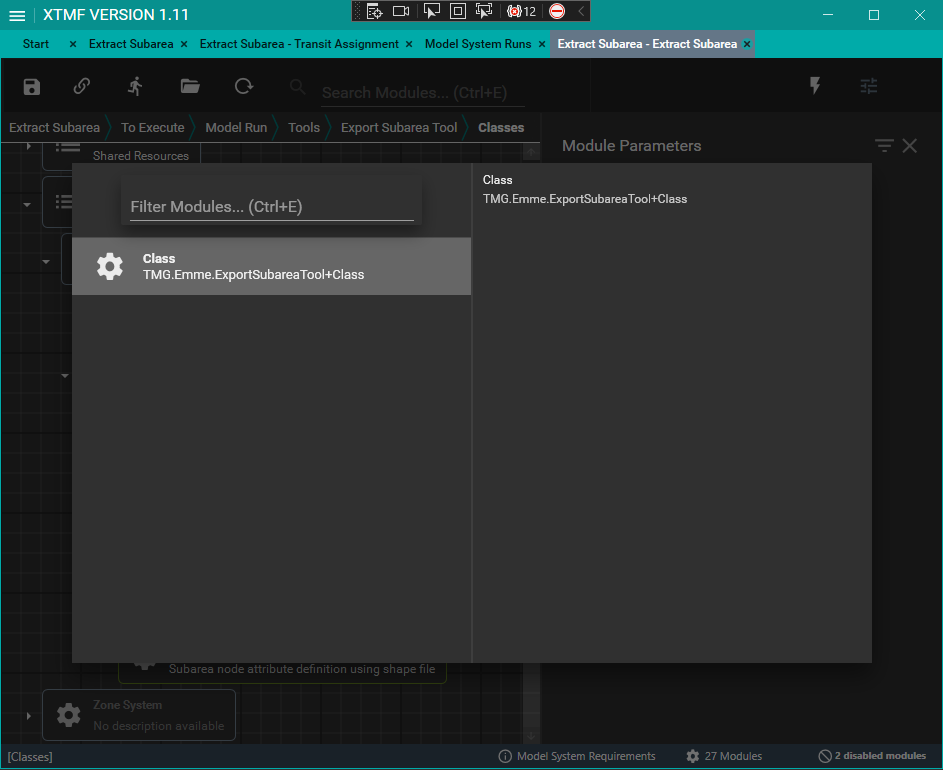

Figure 5: Add class sub-module

4. Enter class sub-module parameters needed to run the tool.

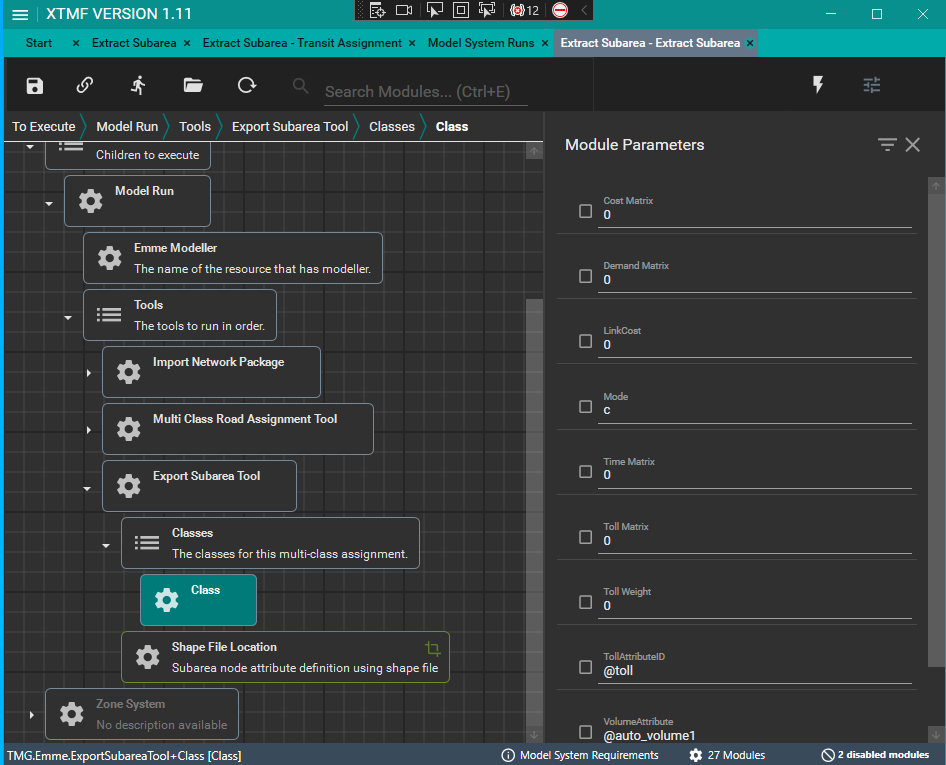

Figure 6: Enter class module parameters

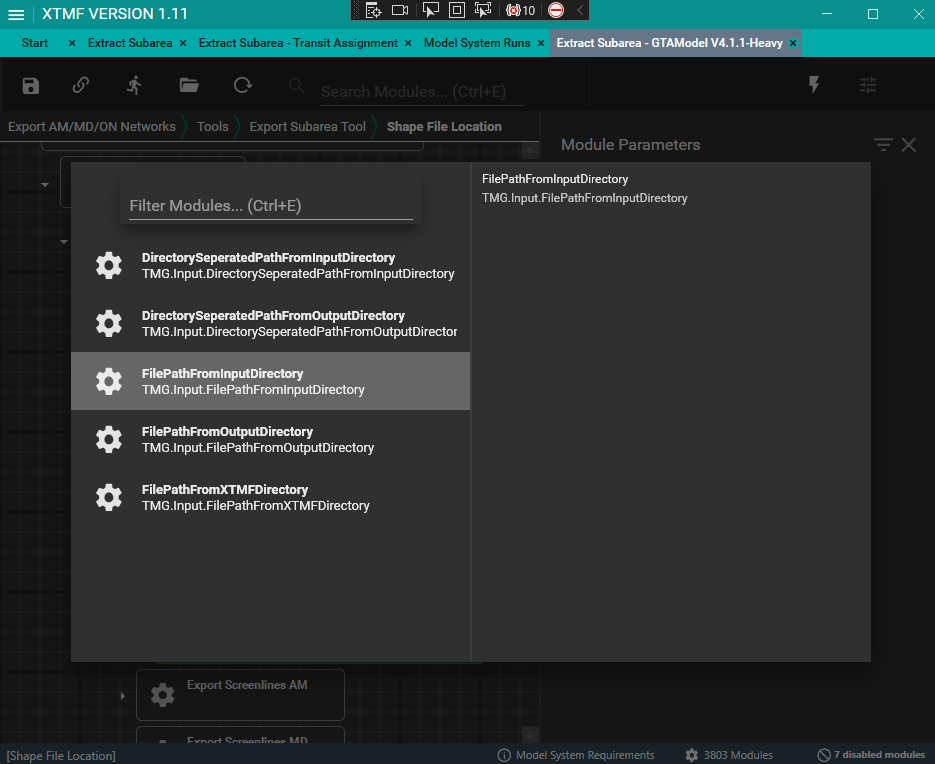

5. (Optional) Add shape file location sub-module and set the name of the shape file to use.

Add shape file sub-module
Figure 7: Add shape file sub-module

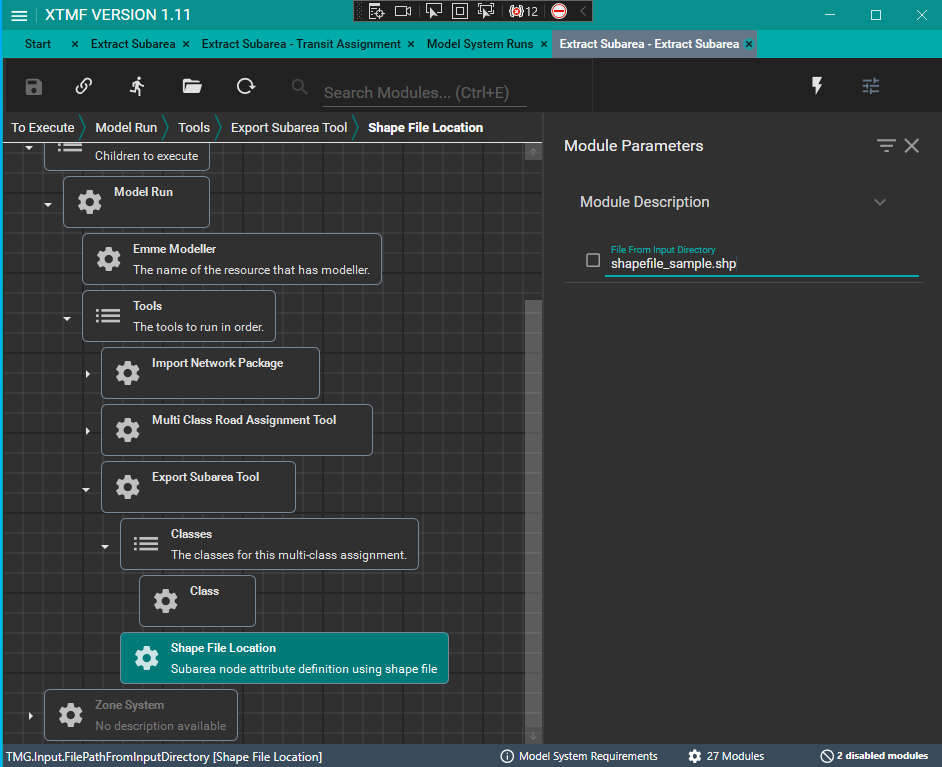

Enter shapefile name
Figure 8: Enter shapefile name

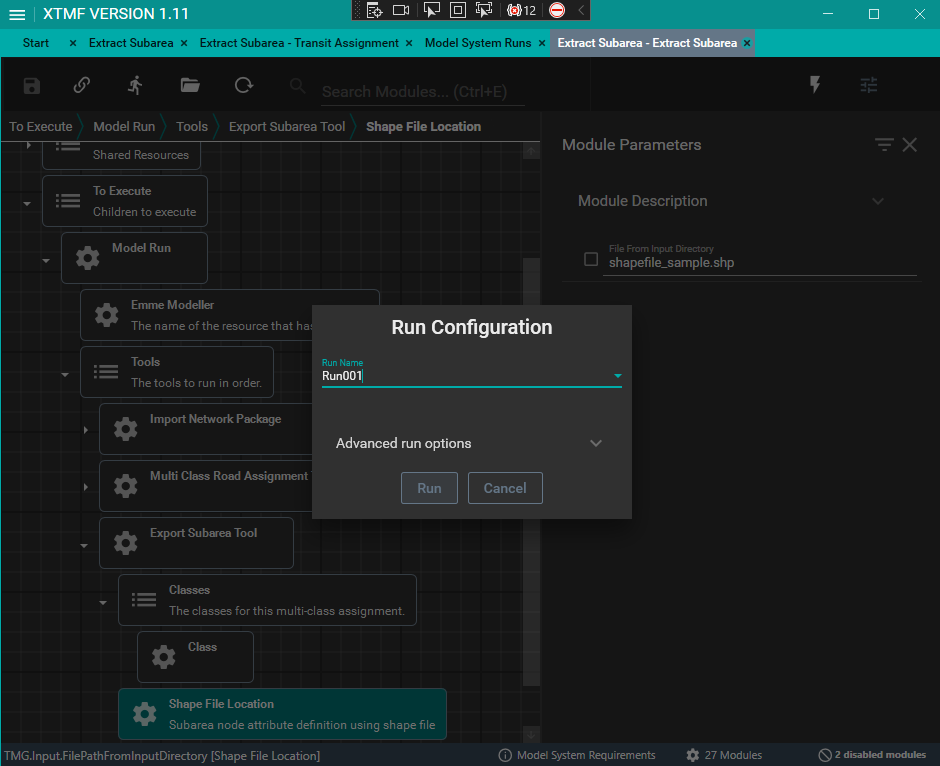

6. Run model system

Figure 9: Run Model

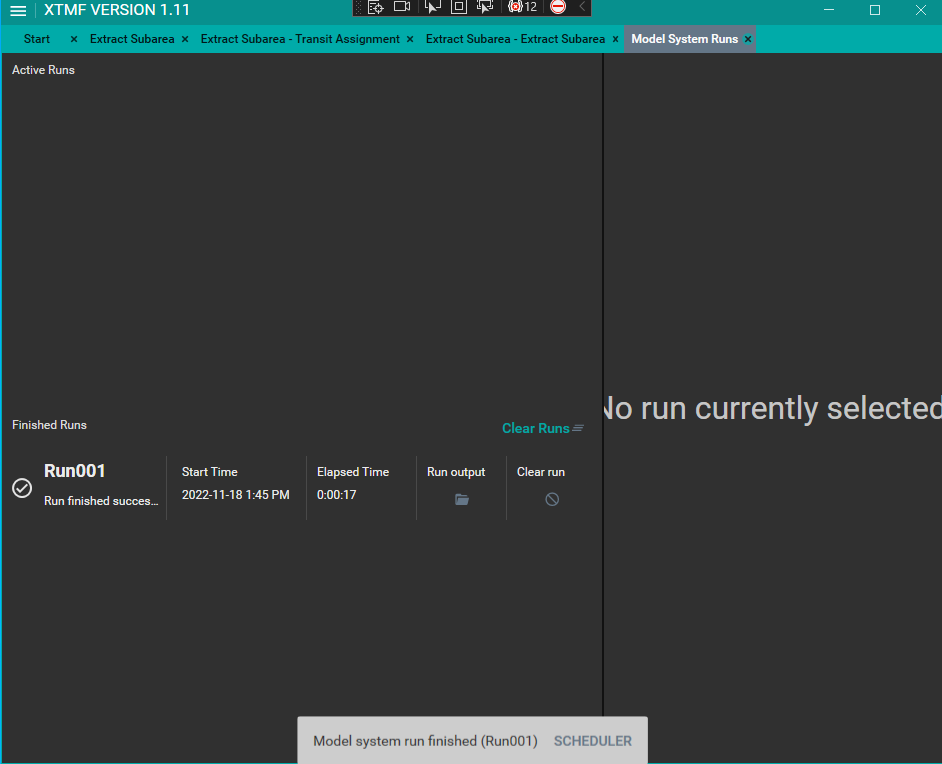

Run Finished
Figure 10: Run Finished

Tutorial - Adding Export Subarea Tool within a GTAModel System in XTMF

The ExportSubareaTool can be added into a GTAModel model system under the post run.

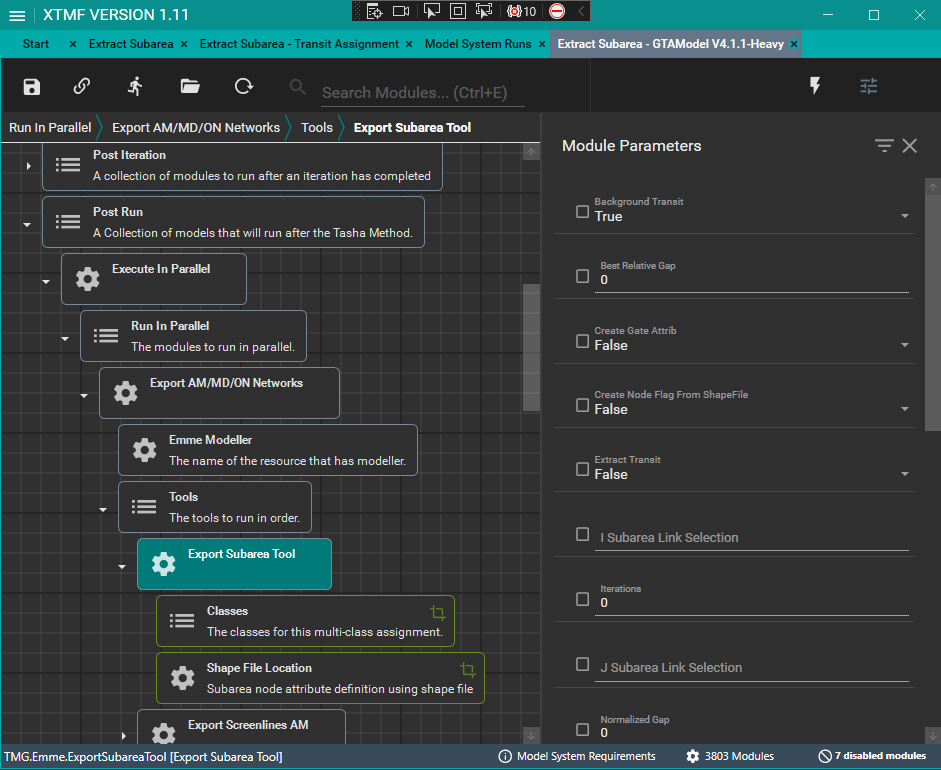

Add export subarea to GTAModel
Figure 11: Adding Export Subarea Tool in GTAModel

To set up the subarea tool with all its parameters within a GTAModel system, use the tutorial in the preceding section.
