Export Subarea Tool

The ExportSubareaTool is used to export the road network from a regional network, the ExportSubareaTool extracts the traversal demand matrices, link volumes, turn volumes, transit network (optional), and traffic and transit traversal demand matrices (optional). To learn more about the subarea network, visit the TMG Export Subarea Tool Documentation.

In this workshop, we are going to learn how to use the TMG ExportSubareaTool to export a subarea from a regional network.

Download resources needed to complete this tutorial

1. Regional Network (*.NWP) file

   • [Frabitztown regional network package file](https://tmg.utoronto.ca/files/tutorials/1.frabiztown.zip)

2. ShapeFile (*.SHP) representing subarea to export

   • Polygon [Shapefile](https://tmg.utoronto.ca/files/tutorials/2.frabiztown_shapefile.zip) of the subarea within Frabitztown

3. TMGToolbox (*.MTBX) files

   • [Toolbox is compatible with EMME 4.6.0+](https://tmg.utoronto.ca/files/tutorials/3b.TMGToolbox_MTBX_Python3.zip)
   • [Toolbox is compatible with EMME 4.4.4.2](https://tmg.utoronto.ca/files/tutorials/3a.TMGToolbox_MTBX.zip)

4. Completed XTMF Model System file(*.XML)

5. Sample subarea output folder

Note

Adding Export Subarea Tool to XTMF requires XTMF 1.11+.

Set up XTMF or Emme Modeller

The subarea tool can be added to the Emme Modeller or XTMF.

• [Export Subarea Tutorial](ExportSubarea.md) if you are using Emme notebook or
• [Add Export Subarea Tool to XTMF](AddSubareaTool2XTMF.md) if you are using XTMF

Frabitztown Regional Network

In this workshop, we will be exporting a subarea road & transit network from the Frabitztown network.

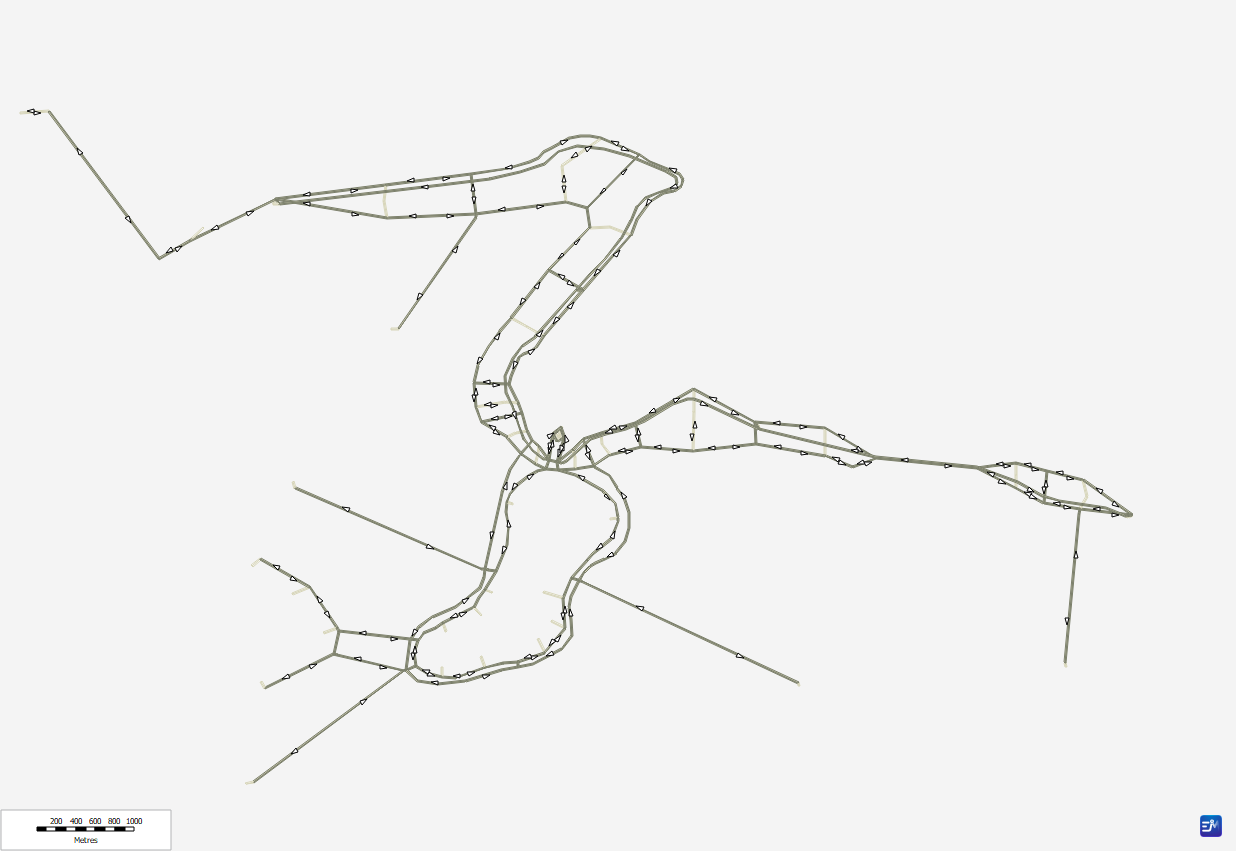

Figure 1: Frabitztown Regional Network

Preparing inputs into the TMG Export Subarea tool

1. Define the node extra attribute (@nflag) used to hold the subarea definition

Before running the Export subarea tool we must identify the nodes of the subarea we want to export from the regional network. The extra attribute @nflag is set to 1 representing the subarea or 0 otherwise.

If the regional network does not already have a node extra attribute defining the subarea, then there are various ways to define the subarea.

The TMGToolbox Export Subarea Tool provides an optional method to define the subarea within a network using polygon shape files. To do this, the TMG ExportSubareaTool create an extra node attribute (e.g. @nflag) from the polygon ShapeFile provided, and set it to either 0 or 1 to define the subarea.

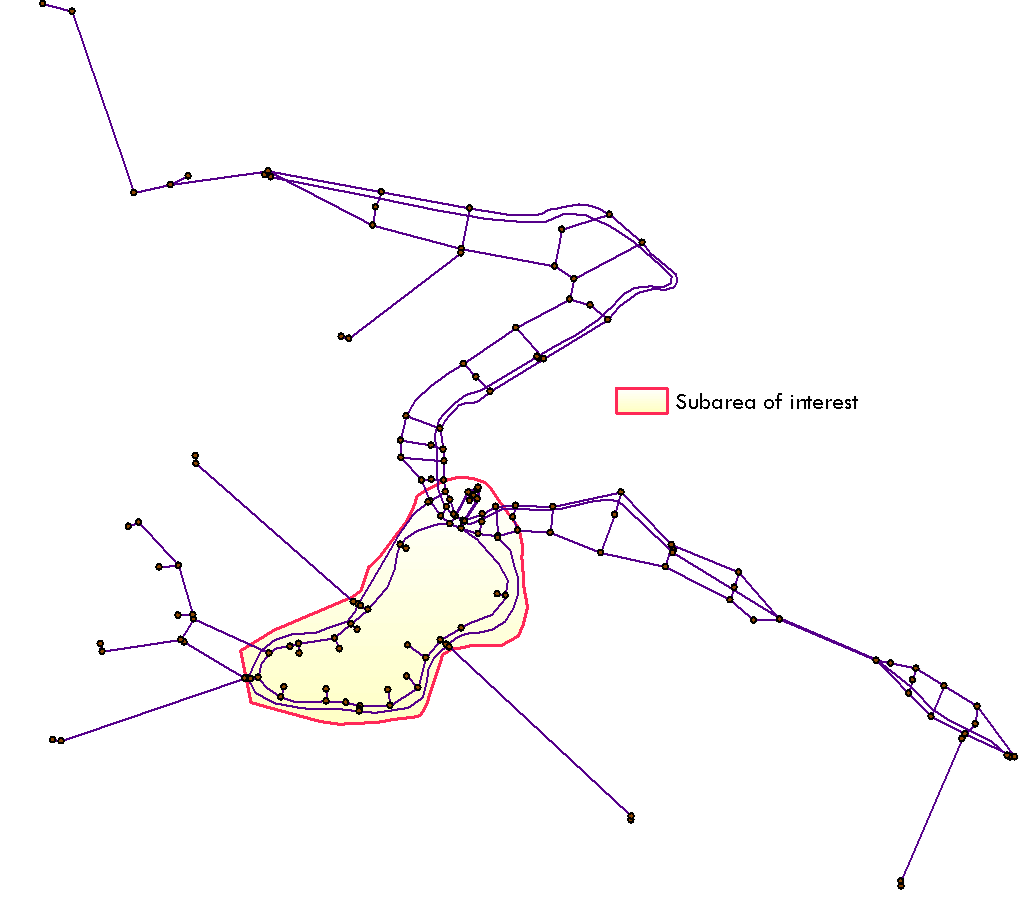

Figure 2: Subarea Polygon ShapeFile within Frabitztown Network

2. Define link attribute (@gate) used to hold the gate information.

If the regional network does not have gate information defined, supplying all the centroid connections within the subarea as input parameters into the TMGToolbox Export Subarea Tool creates gate information for your network.

In this workshop, we will be setting the parameters i subarea link selection and j subarea link selection to all the centroid connections within the subarea. i.e.

    "i_subarea_link_selection": "i=21,24 or i=27,28 or i=31,34",
    "j_subarea_link_selection": "j=21,24 or j=27,28 or j=31,34”

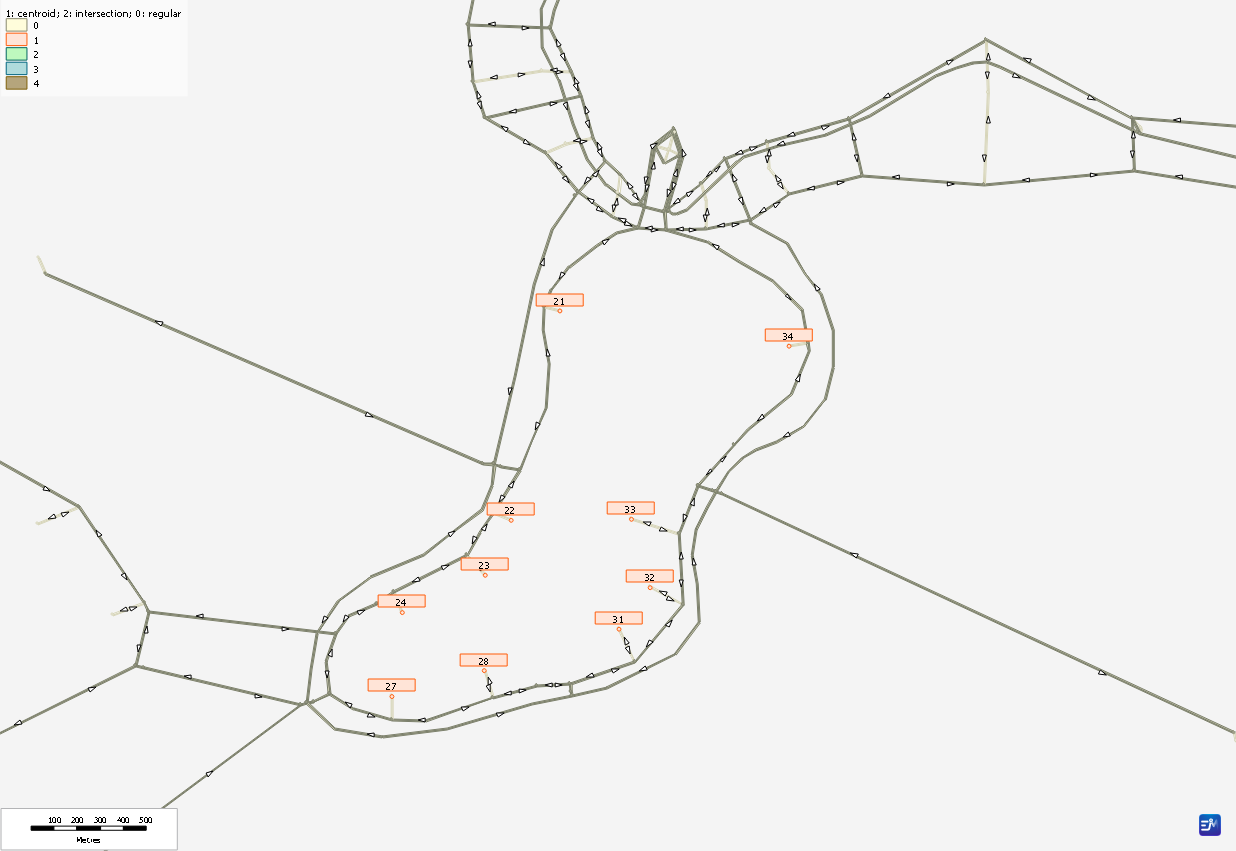

Figure 3: Centroids within the subarea

Start Coding

Prepare Export Subarea tool JSON parameters

So far we have prepared

• The needed input files (network files, shapeFiles, etc.)
• Identified all the centroid connections within our subarea to use for gate link selection

Now we are going to prepare the JSON parameters needed to successfully run the subarea tool. Below is a sample parameter script. Parameter explanation can be found in the [Export Subarea Tool Documentation](https://tmg.utoronto.ca/doc/1.6/tmgtoolbox/input_output/ExportSubareaTool.html)

#parameters
scenario_number = "1"

#Import Network Package parameters
network_file = "test.nwp"
conflict_option = "OVERWRITE"
scenario_name = "Frabitztown"

# Import Binary Matrix parameters
matrix_type = 4
matrix_number = "10"
import_file =  "Test0.25.mtx"
matrix_description = "demand matrix"

# Export Subarea Tool parameters
modes = "c"
demand_matrix_id = "mf10"
time_matrix_id = "mf0"
cost_matrix_id = "mf0"
toll_matrix_id = "mf1"
peak_hour_factor = "1"
link_cost = "0"
toll_weight = "1"
iterations = 4
r_gap = 0
br_gap = 0
norm_gap = 0
shape_file_location = "frab_shape/frab_border.shp"
i_subarea_link_selection = "i"
j_subarea_link_selection = "j"
subarea_gate_attribute = "@gate"
subarea_node_attribute = "@nflag"
create_node_flag_from_shapefile = True
create_gate_attrib = True
extract_transit = True
output_folder = "Subarea5"
performance_flag = True
run_title = "road assignment"
link_toll_attribute_id = "@toll"
name_string = "traffic class 1"
result_attributes = "@auto_volume1"
background_transit = True
on_road_ttf_ranges = "3-128"
max_cores = 16 # XTMF 1.12+

Caution

Export Subarea Tool parameters require editing:

• Follow the code along exercise to fix export subarea tool parameters.
• Frabitztown network does not have transit result stored.

Add the TMGToolbox to Emme Modeller

Follow this link to learn how to add TMGToolbox to the Emme Modeller.

Code Along Exercise

Complete the following exercise to get the correct parameters above

1. Copy the above parameters into the EMME notebook

2. Edit the three Export Subarea Tool parameters above to match the following:

       i_subarea_link_selection = "i=21,24 or i=27,28 or i=31,34"
       j_subarea_link_selection = "j=21,24 or j=27,28 or j=31,34"
       extract_transit = False


3. Add the script below to the below the parameters and run script


       import_matrix = m.tool("tmg.input_output.import_binary_matrix")
       import_network = m.tool("tmg.input_output.import_network_package")
       export_subarea_network = m.tool("tmg.input_output.export_subarea_tool")

       import_network(network_file, scenario_number, conflict_option)

       import_matrix(matrix_type, matrix_number,import_file,scenario_number,matrix_description)

       export_subarea_network(
           scenario_number,
           modes,
           demand_matrix_id,
           time_matrix_id,
           cost_matrix_id,
           toll_matrix_id,
           peak_hour_factor,
           link_cost,
           toll_weight,
           iterations,
           r_gap,
           br_gap,
           norm_gap,
           shape_file_location,
           i_subarea_link_selection,
           j_subarea_link_selection,
           subarea_gate_attribute,
           subarea_node_attribute,
           create_node_flag_from_shapefile,
           create_gate_attrib,
           extract_transit,
           output_folder,
           performance_flag,
           run_title,
           link_toll_attribute_id,
           name_string,
           result_attributes,
           background_transit,
           on_road_ttf_ranges,
           max_cores  # XTMF 1.12+
       )


Note

Running this tool within XTMF makes it much easier to manage. Learn more on how to set up the Export Subarea tool within XTMF/TMGToolbox and within a GTAModel System here.

Output - Export Subarea Tool

The tool outputs a folder that contains a new database containing only the network of the subarea. After loading the emmebank into Emme, the subarea of the Frabitztown regional network looks like

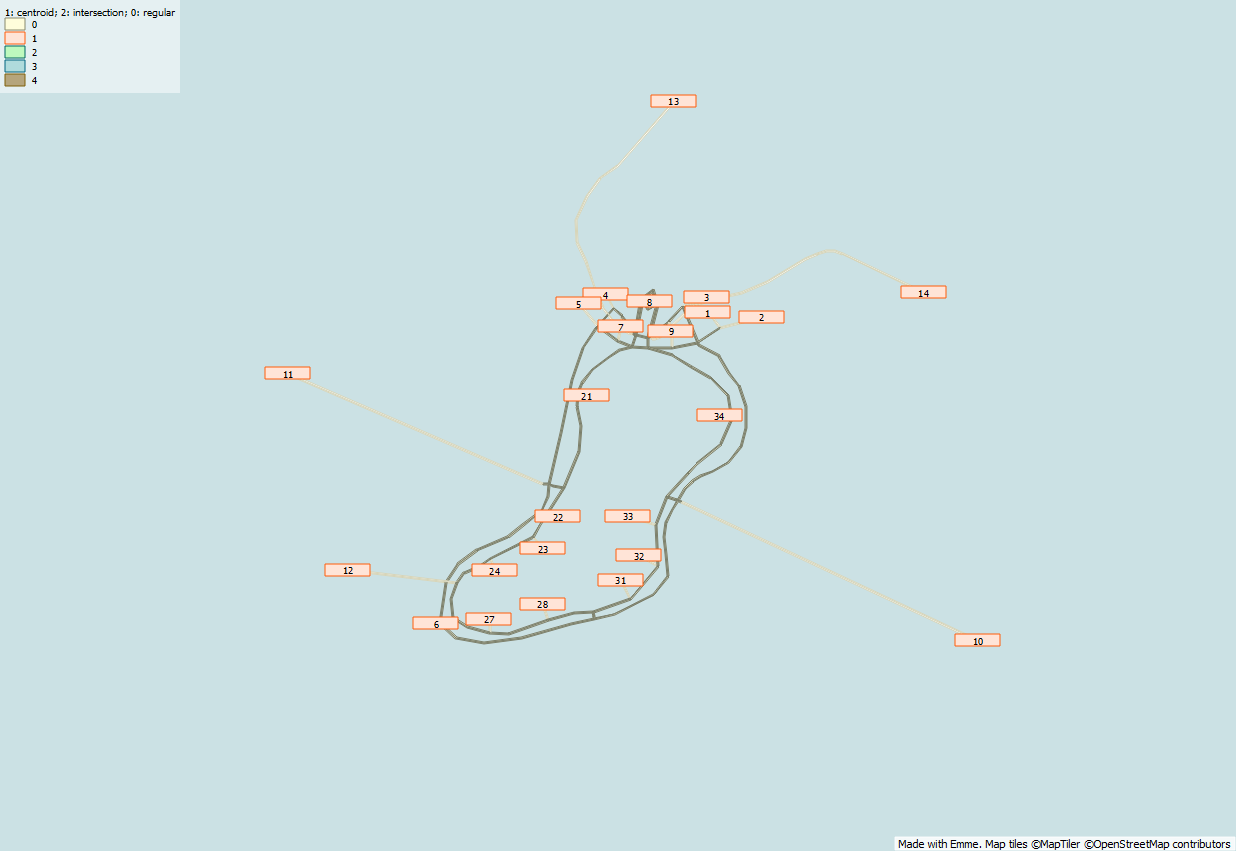

Figure 4: Frabitztown Subarea Network

Detailed analysis of the trips into and out of the Frabitztown subarea.
