The City of Frabitztown

Information

Located in the far north, Frabitztown is a test model system put together for the purpose of testing both the XTMF software and model systems built within it. There are 13 zones and 1 planning district in Frabitztown - with a total population of 6,526. For simplicity, there exists only one class of employment within the model city: “General”.

The actual population was manually sythensized to introduce congestion and other problems within the network. There are 6 transit lines.

_images/frabitztown.png

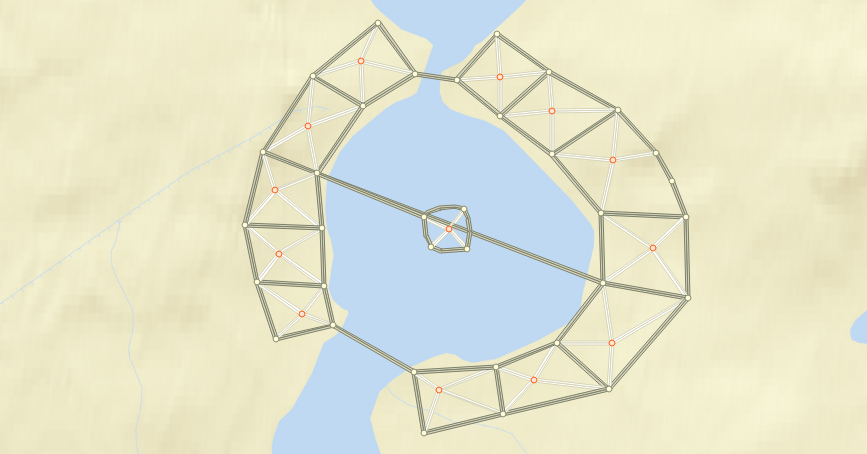

Network view of Frabitztown inside EMME Modeller.

Population and Employment

Zone Population Work General Employment
1 738 398 532
2 648 335 269
3 496 244 144
4 546 269 249
5 722 386 486
6 501 190 181
7 281 102 68
8 367 158 108
9 363 176 105
10 286 151 196
11 705 384 484
12 665 353 397
13 208 105 32
Total 6526 3521 3521
